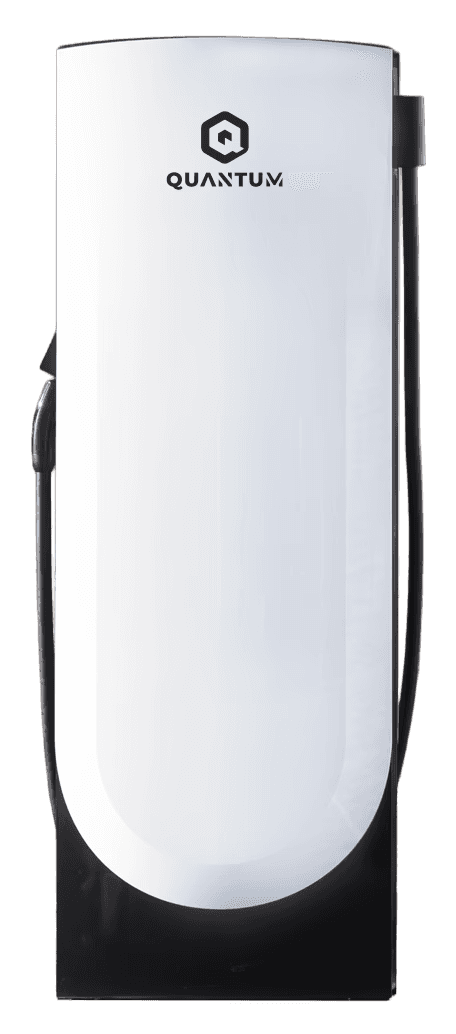

Level II Specs + Features
Charger Specifications
Input: 480 VAC (3P+N+PE), 60 Hz
Output Voltage: 150–500 VDC
Output Current: 0–150 A
FLA | Breaker Rating: 80 A | 100 A
DC Charge System: Mode 4 – IEC 61851, ISO 15118, DIN 70121; CHAdeMO 0.9, 1.0
Communication | Protocol: Ethernet, 4G/WiFi | OCPP 1.6J
Efficiency: >94% at nominal output power
Power Factor: >0.98
Environmental
Usability + Design
Features
